Beschreibung

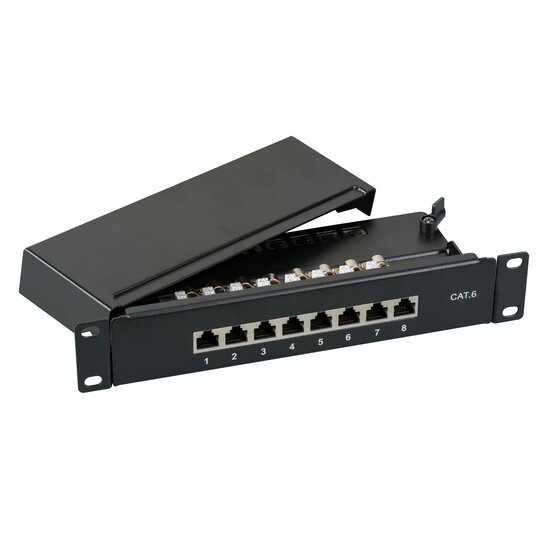

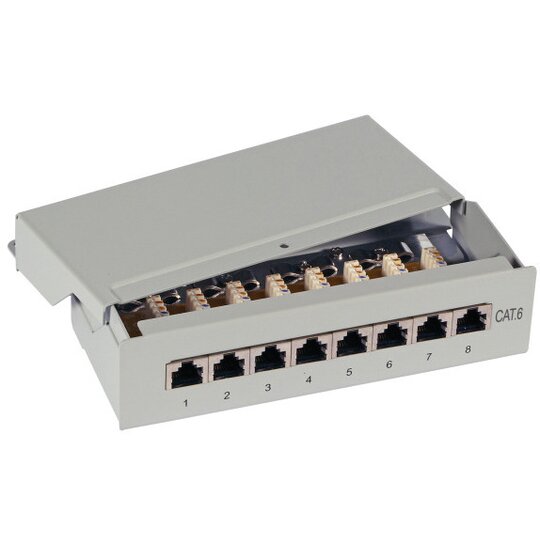

The high quality of the shielded Cat.6 RJ45 mini patch panel ensures excellent performance for 5 Gigabit Ethernet applications. In addition, the mini patch panel is characterized by its versatile mounting options. It is suitable for installation in a 10 "plane , for attachment to the wall or in conjunction with the DIN rail clamp set (Part No. H83030.1) for DIN rail mounting . 10 "mounting / wall mounting or DIN rail mounting possible, 1U 8 ports LSA connection strip for installation cable AWG24..AWG22 Color code according to TIA / EIA 568 A / B Lid with quick release With earthing terminal Scope of delivery: 8 cable ties, assembly instructions 4 screws (M6x16mm) and nut
| Anzahl der Buchsen/Kupplungen | 8 |
| Geeignet für Anzahl Buchsen/Kupplungen | 8 |
| Steckverbindertyp | RJ45 8(8) |
| Geschirmt | true |
| Kategorie | 6 |
| Anschlussart | LSA |
| Anzahl der Höheneinheiten (HE) | 1 |
| Farbe | grau |
| RAL-Nummer | 7035 |
| Montageart | sonstige |
| Höhe | 44,5 mm |
| Breite | 250000 mm |
| Tiefe | 108 mm |
| Kompatibel mit Grade2TV nach XP-C 90-483 | true |
| Kompatibel mit Grade3TV nach XP-C 90-483 | true |
